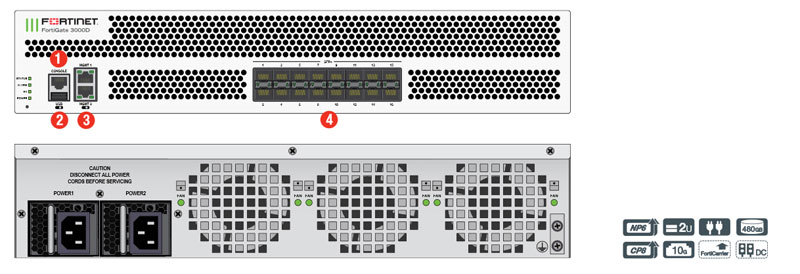

Fortinet FortiGate 3000D
Fortinet FortiGate 3000D
Specifications:
| FORTIGATE 3000D | |
|---|---|
| Interfaces and Modules | |
| 10 GE SFP+ / GE SFP Slots | 16 |
| GE RJ45 Management Ports | 2 |
| USB Ports (Server) | 1 |
| Console Port | 1 |
| Internal Storage | 480 GB |
| Included Transceivers | 2x SFP+ (SR 10GE) |
| System Performance and Capacity | |
| Firewall Throughput (1518 / 512 / 64 byte, UDP) | 80 / 80 / 50 Gbps |
| IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) | 80 / 80 / 50 Gbps |
| Firewall Latency (64 byte, UDP) | 3 µs |
| Firewall Throughput (Packet per Second) | 75 Mpps |
| Concurrent Sessions (TCP) | 50 Million |
| New Sessions/Second (TCP) | 400,000 |
| Firewall Policies | 100,000 |
| IPsec VPN Throughput (512 byte) | 50 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 20,000 |
| Client-to-Gateway IPsec VPN Tunnels | 64,000 |
| SSL-VPN Throughput | 8 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum) | 30,000 |
| IPS Throughput | 14 Gbps |
| Antivirus Throughput | 5.7 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 500 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 4,096 / 1,024 |
| Maximum Number of FortiTokens | 5,000 |
| Maximum Number of Registered FortiClients | 20,000 |
| High Availability Configurations | Active/Active, Active/Passive, Clustering |
| Dimensions amd Power | |
| Height x Width x Length (inches) | 3.5 x 17.4 x 21.9 |
| Height x Width x Length (mm) | 88 x 442 x 555 |
| Weight | 37.5 lbs (17.0 kg) |
| Form Factor | 2 RU |
| AC Power Supply | 100-240V AC, 50-60 Hz |
| DC Power Supply (FG-3000D-DC) | 40.5-57V DC |
| Power Consumption (Average / Maximum) | 310 W / 427 W |
| Heat Dissipation | 1457 BTU/h |
| Redundant Power Supplies | Yes, Hot Swappable |
| Operating Environment and Certifications | |
| Operating Temperature | 32-104°F (0-40°C) |
| Storage Temperature | -31-158°F (-35-70°C) |
| Humidity | 10-90% non-condensing |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN |
