Power consumption

8.88W, 30.28 BTU/hr (idle)
10.44W, 35.6 BTU/hr (full load)

Operating temperature

0-40°C (operating)
-20 to +80°C (storage)

Humidity

10%-90%, non-condensing

Product Certifications

Certifications

CB, UL, CE, FCC, ISED, VCCI, MIC (Japan),
RCM, CCC, KC
Planned: BIS

Wireless Specification (XG 105w Wireless and XG 115w Wireless only)

No. of antennas

2 external

MIMO capabilities

2 x 2:2

Wireless interface

802.11a/b/g/n/ac (2.4 GHz / 5 GHz)

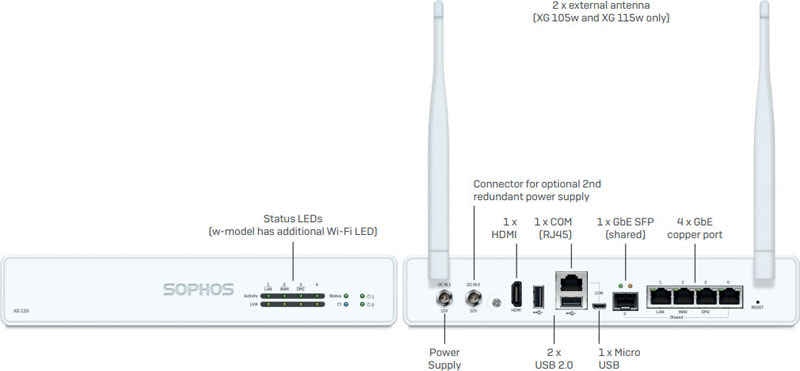

Physical interfaces

Storage (local quarantine/logs)

integrated SSD

Ethernet interfaces (fixed)

4 GbE copper
1 GbE SFP (shared)*

Connectivity modules (optional)

SFP DSL module (VDSL2)
SFP Transceivers

I/O ports (rear)

2 x USB 2.0
1 x Micro-USB
1 x COM (RJ45)
1 x HDMI

Power supply

External auto ranging DC: 12V, 100-
240VAC, 36W@50-60 Hz
Redundant PSU optional (external)
